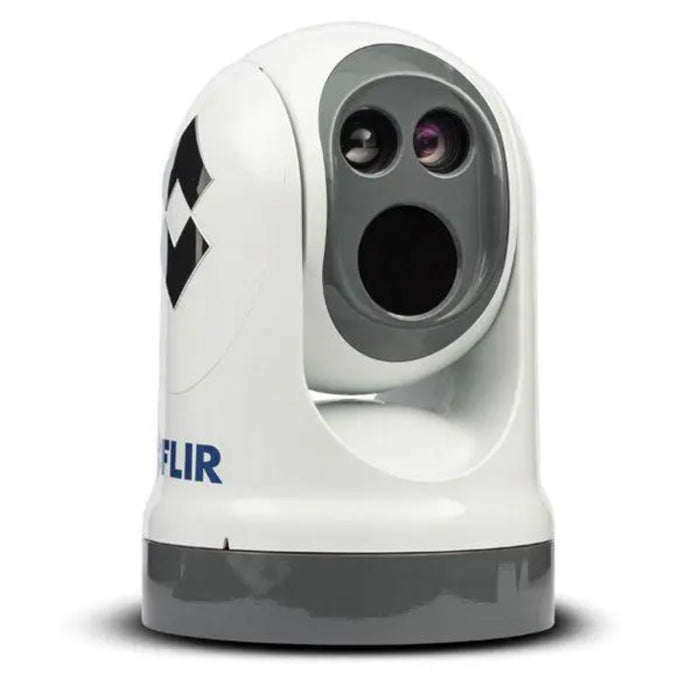

FLIR M400XR 30Hz Thermal Imaging Camera w/ Joystick Control Unit
Specially designed for first responders, the FLIR M400XR offers detailed 640 x 480 thermal video, a long-range HD Color camera, and a tight beam LED spotlight for improved target identification. In addition to active gyro stabilization and radar tracking, the M400XR’s integrated video tracking can lock onto and follow objects within its field of view. Firefighting mode displays a target temperature meter and isotherms to aid firefighters in battling blazes. The FLIR M-400XR provides exceptional situational awareness for first responders. It includes custom firefighting software that displays a target temperature meter and isotherms. InstAlert™ mode depicts the hottest objects in shades of red and orange for easy identification, while IceAlert™ turns the coolest objects in view blue and green.
Features
- Weight: 25 lbs
- Item Name: Stabilized Thermal/Visible Vision Camera with Joystick Control Unit
- Model: 432-0012-04-00
- Manufacturer: FLIR
- Resolution: HD Up to 1080/30p Daylight, 640 x 480 pixel Thermal
- Field of View: 64 deg to 2.3 deg Optical HFOV/0.2 NFOV e-zoom
- Person In Water Range: 1.3 nm
- Magnification: 30x (Optical), 1x to 4x (E-Zoom Thermal)
- Video Output: NTSC, PAL, Dual, Independent H.264 Network Video Streams, HD-SDI Lossless
- Focal Length: 129 to 4.3 mm (Daylight), 35 mm Wide to 105 mm Narrow (Thermal)
- Pan and Tilt Adjustment Range: 360 deg Pan, +/-90 deg Tilt
- Power Consumption: <50 W Nominal; 130 W Peak; 270 W (2) Heater
- Video Connector Type: BNC Adapter
- Small Vessel Range: 3.2 nm
- Video Refresh Rate: <9 Hz NTSC or 30 Hz Hz
- Dimensions: 10.75 in Dia x 15.65 to 18.05 in H (with Top Down Riser)
- Sensor Type: 640 x 480 VOx Microbolometer
- Operating Temperature: -20 to 55 deg C
