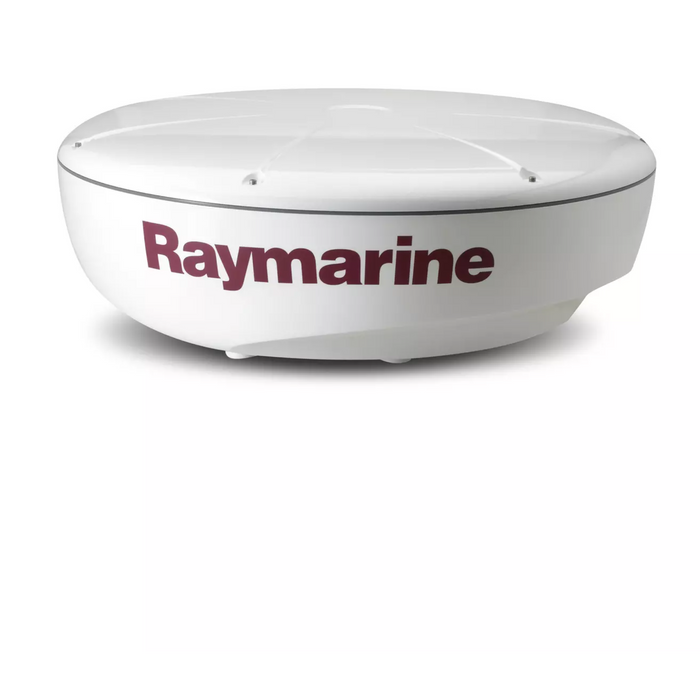

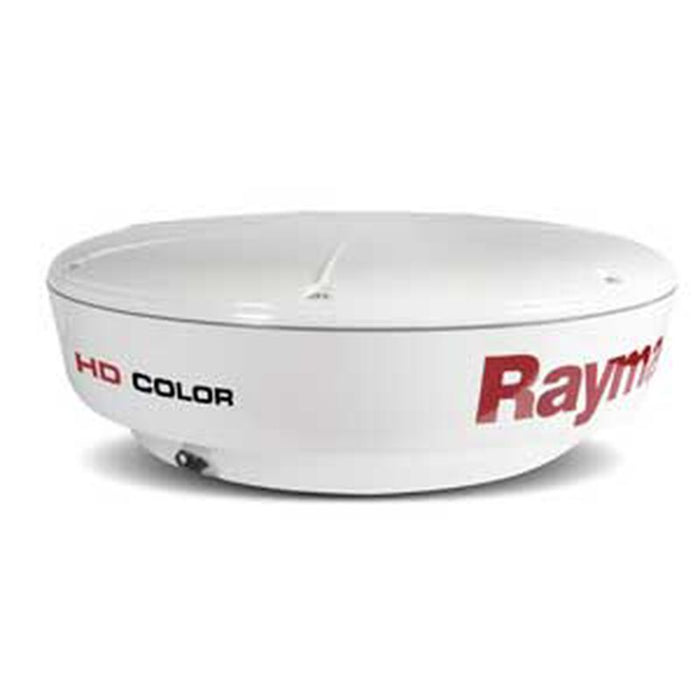

RAYMARINE Color Radome - RD424HD
When power is limited, and space is a concern, consider Raymarine's HD Color Radomes - perfect for sailboats, RIBs, and compact powerboats.
Raymarine's HD Color radome scanners offer the benefits of HD Color signal processing in an ultra-compact design suitable for various vessels. With a 256-color radar display, these radomes provide the clearest and most lifelike presentation, making them an ideal choice for all types of boats.
The RD424HD model incorporates adaptive digital receiver technology, similar to Raymarine's open array antennas. This technology automatically adjusts to environmental and sea conditions, ensuring precise contact echoes at short ranges and exceptional long-range performance of up to 48 nautical miles.
Each radome pack includes a 10m Raynet™ digital radar cable, and Digital Radar Extension Cables are also available. These radomes are compatible with third-generation c-Series/e-Series, C-Series/E-Series Widescreen, E-Series Classic, and G-Series displays.
Features
- SeaTalkhs connectivity and Raymarine's Auto GST technology provide enhanced small target returns and eliminate clutter caused by rain and sea conditions automatically through your multi-function display
- Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture
- 256-color multi-level target display with selectable color palettes
- Bird Mode automatically optimizes the receiver for detecting sea birds above schools of fish
- Dual-range mode allows you to monitor both long and short ranges simultaneously with a single scanner and display
Specifications
- Physical dimensions: 25 11/16"dia. x 9 11/16"H
- Weight: 22 lb.
- Waterproof Rating: IPX7
- Rotation Speed: 24/48 rpm
- Transmit Power: 4 kW
- Power Input: 12 - 24 V DC
- Beamwidth: 3.9° horizontal, 25° vertical
- Maximum Range: 48 nm
- Minimum Range: 20 meters
- Radar Type: Radome
- Power Consumption: 60 W (25 W Standby)
- Networking: SeaTalkhs
- Warranty: Three years (with product registration)
