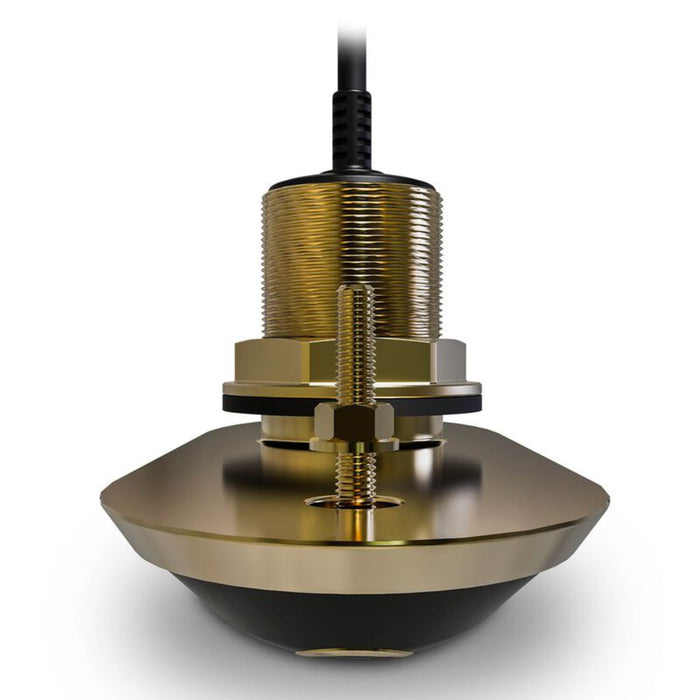

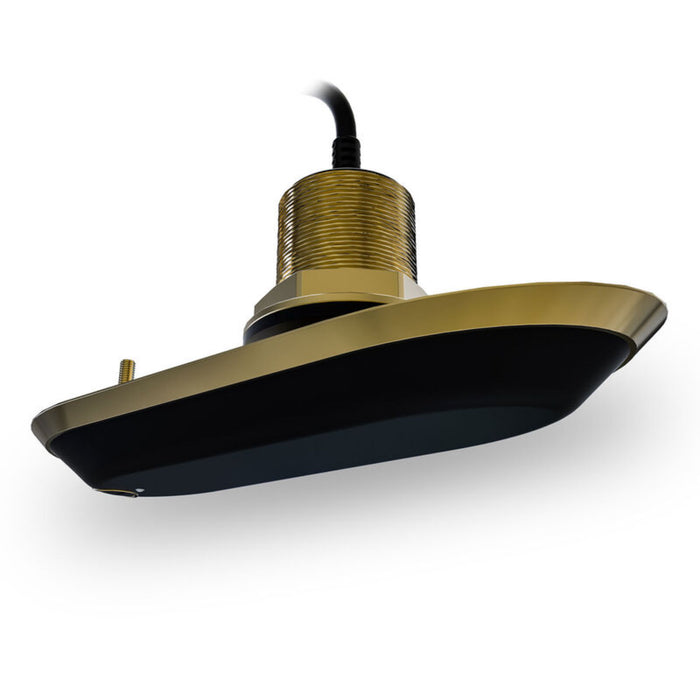

RAYMARINE RV-220 Thru-Hull CHIRP Transducer Bundle

The Raymarine RV-220 Bronze Thru-Hull Transducer System stands out as an advanced sonar solution, seamlessly integrating CHIRP DownVision, CHIRP SideVision, High-Frequency CHIRP, and RealVision 3D technologies within a single transducer housing. This innovative system is crafted to offer a lifelike and comprehensive underwater imaging experience, making it an invaluable tool for both inboard and outboard boats.

Designed to effortlessly identify structures and locate fish, the RV-220 system incorporates a pair of RealVision 3D transducers with an internal offset, accommodating various hull deadrise angles from 13° to 20°. This unique design eliminates the need for fairing blocks, streamlining the installation process. The transducers feature a low-profile design, ensuring minimal water resistance and optimal performance even on trailered boats.

Constructed with rugged cast-bronze thru-hull bodies, the RV-220 system is well-suited for use on fiberglass or wooden hulls. The dual transducer configuration provides a full 180° of underwater coverage, with one transducer transmitting and receiving to port and downward, and the other to starboard and downward. This ensures a comprehensive view of the underwater environment, even on boats with deep keels or protrusions.

The RV-220 system comes with a 2-meter pigtail, joining y-cable, and an 8-meter extension cable, resulting in a generous overall cable length of 10 meters (33 feet). This thoughtful design facilitates flexible and convenient installations on a variety of vessels.

In summary, the Raymarine RV-220 Bronze Thru-Hull Transducer System delivers a sophisticated sonar solution that goes beyond traditional capabilities, providing boaters and anglers with a detailed and immersive view beneath the water's surface.

Features

• Gyro-stabilized sonar technology: Gyro stabilization compensates for boat movement, delivering lifelike 3D sonar imagery.
• Wide spectrum CHIRP sonar: Transmits on 60 different frequencies for the most lifelike sonar imagery and simply the best fish targeting – hands down!
• Easy fish identification: Easily identify structures and locate fish with the lifelike clarity of RealVision™ 3D sonar
• Powerful four-channel sonar: Supports RealVision 3D, CHIRP DownVision, SideVision, high frequency CHIRP, and 600W  50/200kHz traditional sonar
• The transducer has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion
• You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering
• Built-in fast-response water temperature sensor for quick, accurate readings
• Rugged cast-bronze thru-hull bodies suitable for fiberglass or wooden hulls
• One transducer transmits and receives to port and downward, the other to starboard and downward, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions
• The low-profile design slips effortlessly through the water without causing drag or cavitation
• Each transducer features a 2-meter pigtail, joining a y-cable and 8-meter extension cable, resulting in an overall cable length of 10 meters (33').
• The near-flush RV-220 system works great on trailered boats too, and with no fairing block to cut, installation is a breeze

Specifications

• Application: Axiom displays
• Style: Twin thru-hulls
• Cable Length: 6'7" pigtails on each transducer, 26'4"(8m) extension cable
• Connector: 25-Pin Connector
• Monitors: Depth/Temperature
• Material: Bronze
• Transmit Power: 100W (CHIRP); 600W traditional (RMS)
• Frequency: 50/200kHz traditional; DownVision, SideVision, CHIRP and RealVision 3D
• Deadrise Angle: 13° to 20° offset port/starboard
• Max. Depth: Traditional: 900'; 3D: 300'; CHIRP DownVision: 300'; CHIRP SideVision: 300'
• Beamwidths: 180°  total

In the Box?

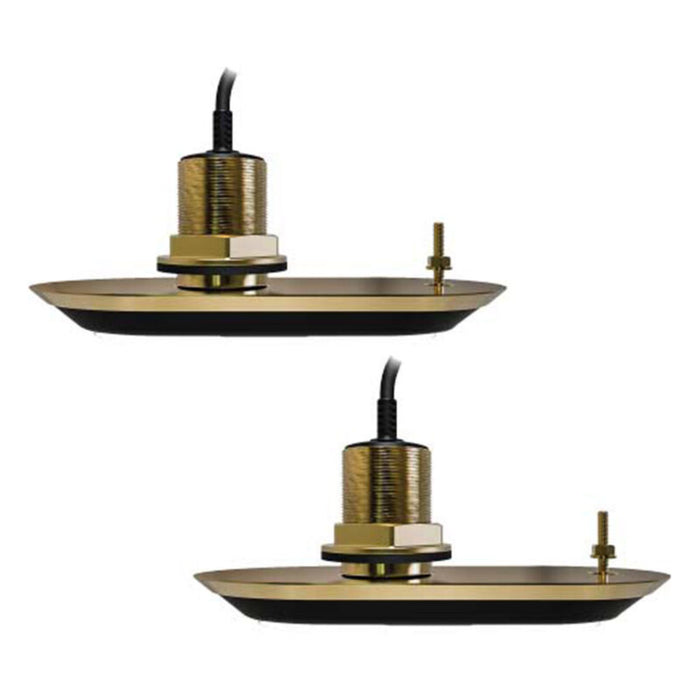

• (2) RV-220 Bronze Thru-Hull Transducers; (1) Port / (1) Starboard
• Split Transducer Y-Cable
• 8 meter Transducer Extension Cable
• Installation instructions
